- Voltage : 12 Vdc
- Capacity :80 Ah
- Battery power (15min) : 1632 W
- Terminals : M6 screw (Insert)
- Layout of the terminals : 5
- Dimensions LxPxH(HT) : 261×168,5×210,5(213,5) mm
- Weight : 25.60 Kg
- Usage : General, UPS
- Number of cells : 6
- Power/cell (15min) : 272 W
- Buffer charging voltage : 13.5 – 13.8 Vdc
- Charging voltage for cyclic use : 14.4 – 15.0 Vdc
- Standard charging current : 22.50 A
- Max Discharge Current (5 sec.) : 800 A
- Discharge temperature : -15 ~ +40 °C
- Charging temperature -15 ~ +50 °C
- Storage temperature : -15 ~ +40 °C
- EUROBAT Classification : 10 – 12 years "Long Life"
- Outer Shell : ABS – HB
BATTERIES, Lead Acid, POWER

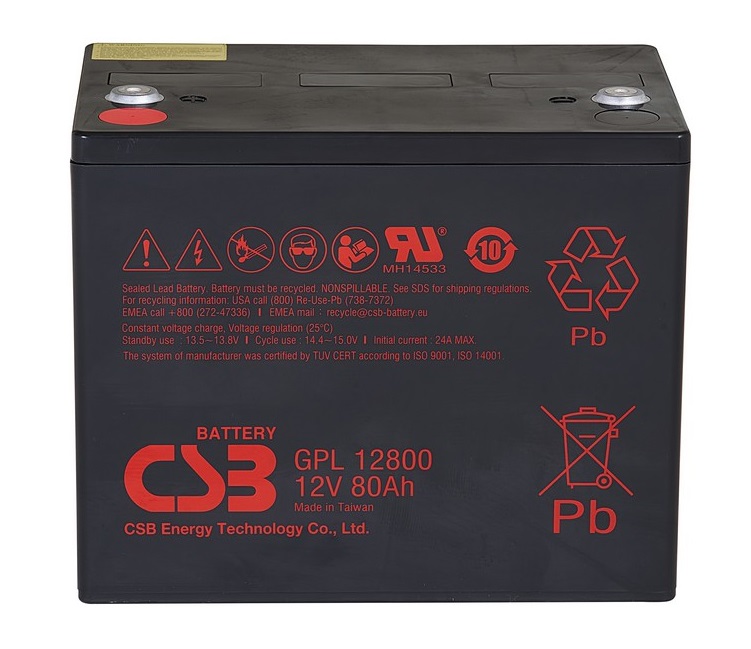

CSB Lead Acid Battery 12V 80AH GPL12800 (Hand Lift)
279,00 €
- CSB lead-acid batteries are valve-operated lead-acid batteries in AGM technology, although commonly referred to as hermetic.
- The GPL series has been designed for a "standby" application with an expected life of 10 – 12 years (EUROBAT 10 – 12 years long life).
- Conforms to the European directive IEC61056-1 / 2.
- For a correct functioning of the battery it is necessary to follow some prescriptions.
- CHARGE: the charge must be made with a constant voltage battery charger strictly following the data reported on the battery. Incorrect voltage can lead to the immediate deterioration of the battery itself.
- Must not be carried, during the discharge phase, to a voltage lower than 10.50 Volt for a 12Volt battery.
- It must not be left discharged after its use, but must be recharged immediately.
- WARNING: The battery contains sulfuric acid. Be careful when handling it. In case of accidental contact with the acid, do not touch the eyes or the mouth. Wash immediately with running water and go to the Emergency Department of the Hospital.
- The battery must be disposed of according to current regulations.
