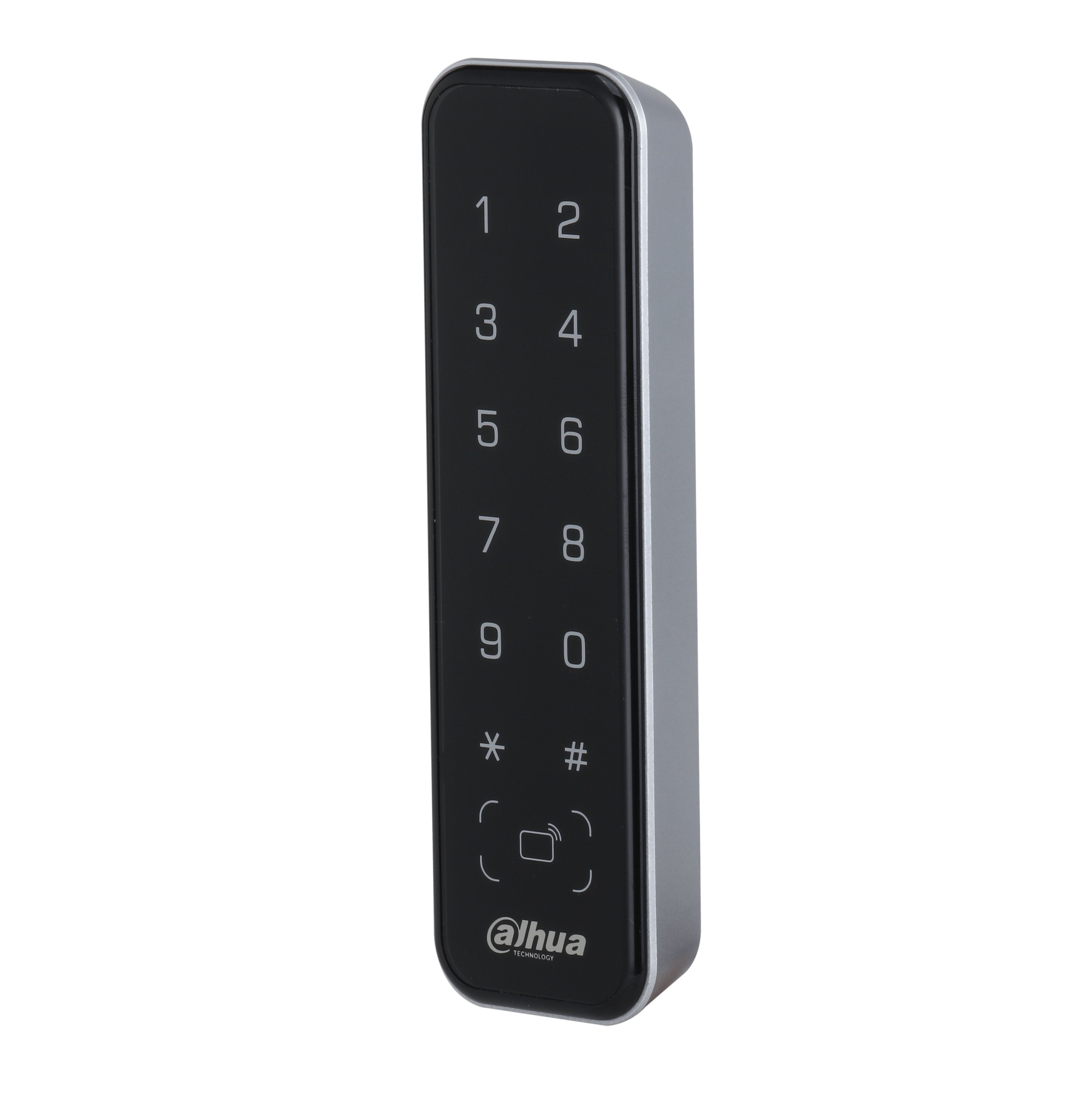

Dahua AC RFID Reader Mifare Cards with Touch Keypad ASR2201A

Basic

• Product Type : Slim Card reader
• Buzzer : Yes
• Casing : Tempered glass/PC

Function

• Unlock Mode : Card swiping/password / Multiple unlocking modes
• Card Type : IC Card

Performance

• Response Time : 0.1 s
• Card Reading Distance : 0 cm–5 cm

Port

• RS-485 : 1 channel
• Wiegand : 1 output channel

Alarm

• Tamper Alarm : Yes

General

• Power Supply : 12V 0.5A DC
• Protection : IP66 (silicon sealant is needed, see the manual)
• Power Consumption : Standby ≤ 0.9W, working ≤ 1.7W
• Product Dimensions : 135 mm × 40 mm × 15 mm(L × W × H)
• Packaging Dimensions : 195 mm × 75 mm × 52 mm
• Operating Temperature : –30°C to +70°C
• Operating Humidity : 5%RH–95% (non-condensing)
• Operating Environment : Indoor; outdoor
• Gross Weight : 0.16 kg
• Installation :Surface mount
• Certifications : CE; FCC
