Conductor
- Material : Oxygen free copper (99.97% purity)
- Diameter : 0.45 mm ± 0.01 mm (0.02" ± 0.0004")
- Wire Gauge : 25 AWG
Insulation
- Material : HDPE
- Min. Average Thickness : 0.18 mm (0.01")
- Diameter : 0.81 mm ± 0.06 mm (0.03" ± 0.0024")
- Color : 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown
Rip Cord
- Material : Polyester
- Specification : 500D
Sheath
- Material : PVC
- Min. Average Thickness : 0.5 mm (0.02")
- Diameter : 4.7 mm ± 0.4 mm (0.19" ± 0.02")
- Color : White
Electrical
- Max. DC Resistance of a Single Conductor : 12 Ω / 100 m
- Min. Insulation Resistance : 5000 MΩ·km
- Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
- Dielectric Strength : No breakdown with 1kV DC for 1 min
Transmission
- Characteristic Impedance : 100 Ω ± 15 Ω
- Near-end Crosstalk : ≥35.3 dB / 100 m @ 100 MHz
- Max. Attenuation : 24.2 dB / 100 m @ 100 MHz
- Return Loss : ≥20.1 dB / 100 m @ 100 MHz
Mechanical
- Tensile Strength : Sheath ≥13.5 MPa, Insulation ≥16 MPa
- Elongation at Break : Sheath ≥150%, Insulation ≥300%
- Installation Bending Radius : >8 times of outer cable diameter
- Conductor Elongation at Break : ≥10%
Environmental
- Shrinkage of Insulation : ≤5%
- Color Migration Resistance of Insulation : No migration
- Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
- Low Temperature Bending Test : No cracking after the test
- Heat Shock Test : No cracking after the test
- Operating Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
- Installation Temperature : 0 °C to +50 °C (+32 °F to +122 °F)
- Storage Temperature and Humidity : –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)
Security
- Vertical Flame Test : Comply with IEC 60332-1-2

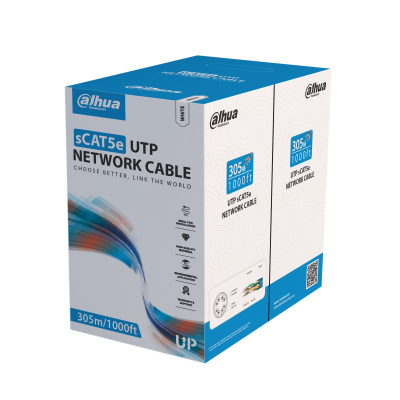

Packaging
- Cable Length : 305.0 m ± 2 m (1000.66 ft ± 6.56 ft)
- Packaging Method : 305 m (1000 ft) a carton, one carton with 2 inner cartons
- Packaging Dimensions : 364.0 mm × 364.0 mm × 216.0 mm (14.37" × 14.37" × 8.50") (L × W × H)
- Transport Package Dimensions : 447.0 mm × 386.0 mm × 382.0 mm (17.60" × 15.20" × 15.04") (L × W × H)
- Net Weight : 8 kg ± 0.6 kg (17.64 lb ± 1.32 lb)
- Gross Weight : 8.5 kg ± 0.6 kg (18.73 lb ± 1.32 lb)
Compliance
- Executive Standards : Q/DXJ 067-2024, EN50575
- Certifications : CPR Eca
- Flame-retardant Standard : EN50575
