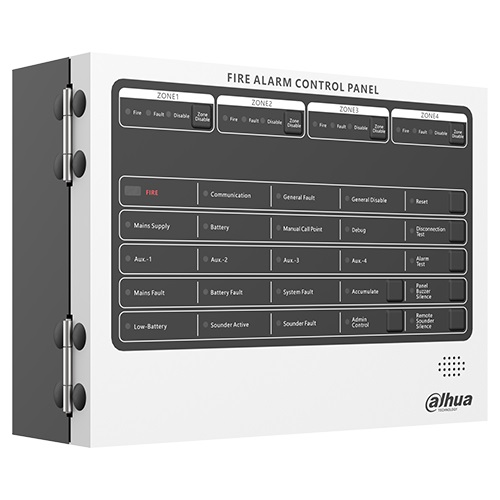

Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4

Conventional Fire System, FIRE ALARM, SECURITY

Dahua Conventional Fire Alarm Control Panel (4 Zones) HY-C102-4

199,00 €

90VAC to 270VAC main power supply ensures the stable operation
4 dry contacts make connection flexible
Ethernet interfaces enables communication with IoT platform
RS-485 interface contributes to convenient integration
Record and export capacity of historical events for each of fire, fault and operation

SKU: 25864 Categories: Conventional Fire System, FIRE ALARM, SECURITY Brand: Dahua

Description
Reviews (0)

Number of Zones : 4
Zone Capacity : 32 detectors per zone
Main Power : AC90-240V/50Hz, 60Hz
Backup Power : 2 lead-acid batteries (12V/2.5Ah each)
Output Current : 2A
Sounder Output : Fault: 50dB / Alarm: 60dB
Fire Bell Output : DC 28V/500mA
Dimensions : 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
Weight : 3.5 kg / 5 kg (with 2 batteries)
Operating Temperature : –10°C to +50°C (+14°F to +122°F)
Operating Humidity : ≤ 95% RH (no condensation)
Protection Grade : IP30
Installation : Wall mount
Compliance Standard : EN54-2,EN54-4
