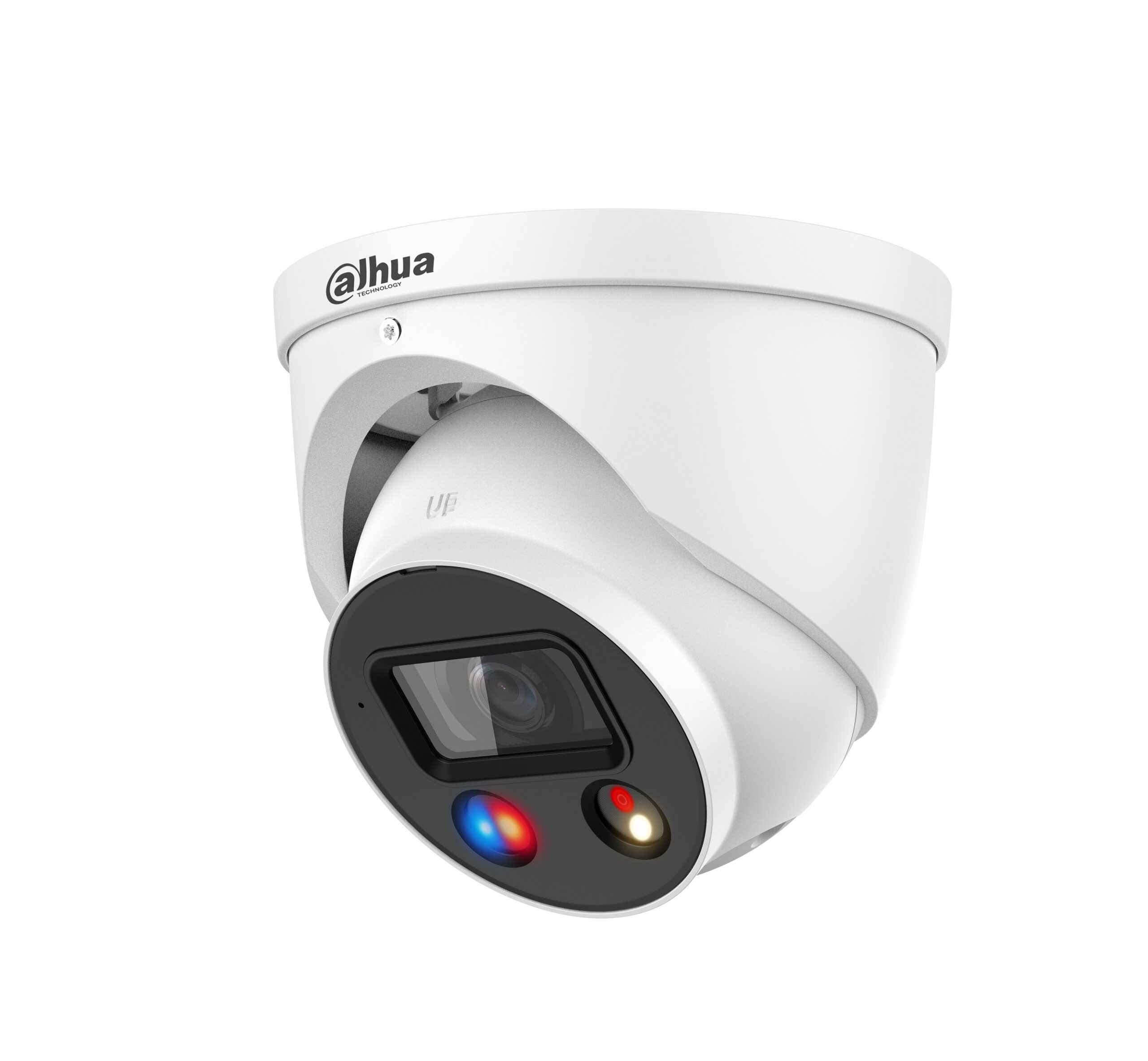

Camera
- Image Sensor: 1/2.7" CMOS
- Max. Resolution: 2960 (H) × 1688 (V)
- ROM: 256 MB
- RAM: 1 GB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/2 s–1/100,000 s
- Min. Illumination: 0.002 lux@F1.0 (Color, 30 IRE) / 0.0002 lux@F1.0 (B/W, 30 IRE) / 0 lux (illuminator on)
- S/N Ratio: > 56 dB
- Illumination Distance: Up to 35 m (IR) / Up to 35 m (warm light)
- Illuminator Control: Auto; manual
- Illuminator: 1 IR LED, 1 warm light
- Angle Adjustment: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Aperture: F1.0
- Field of View:
- 2.8 mm: H: 98°; V: 71°; D: 130°
- Iris Type: Fixed
- Close Focus Distance:
- 2.8 mm: 1.5 m
Intelligent
- IVS (Perimeter Protection): Intrusion, tripwire (supports classification and accurate detection of vehicle and human)
- SMD: SMD 4.0
- AcuPick: Deep learning-based target matching for people and vehicles in live and recorded video
- AI SSA: Automatically adjusts image parameters using deep learning
- Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and video merging
Video
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Smart Codec: Smart H.265+; Smart H.264+
- AI Coding: AI H.265 (≥25% compression) / AI H.264 (≥25% compression)
- Video Frame Rate:
- Main stream: 2880 × 1620 / 2960 × 1668 (1–20 fps); 2688 × 1520 (1–30 fps)
- Sub stream: 704 × 576 (1–25 fps); 704 × 480 (1–30 fps)
- Third stream: 1920 × 1080 (1–25/30 fps)
- Stream Capability: 3 streams
- Resolution: 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
- Bit Rate Control: CBR / VBR / ABR
- Video Bit Rate: H.264: 3 kbps–16384 kbps / H.265: 3 kbps–16384 kbps
- Day/Night: Auto (ICR) / Color / B/W
- BLC: Yes
- HLC: Yes
- WDR: 130 dB
- Scene Self-adaptation: Yes
- White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control: Auto
- Noise Reduction: 3D NR
- Motion Detection: Off/On (4 areas)
- Region of Interest (ROI): Yes (4 areas)
- Smart Illumination: Yes
- Defog: Yes
- Image Rotation: 0° / 90° / 180° / 270°
- Mirror: Yes
- Privacy Masking: 4 areas
- LDC: Yes
Audio
- Built-in Microphone: Yes (8 m pickup range)
- Built-in Speaker: Yes
- Audio Compression: PCM; G.711a; G.711u; G.726; G.723
Alarm
- Alarm Events: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
Network
- Network Interface: RJ-45 (10/100 Base-T)
- SDK/API: Yes
- Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
- Interoperability: ONVIF (Profile S/G/T); CGI
- User/Host: 22 (total bandwidth: 64 Mbps)
- Storage: FTP; SFTP; Micro SD (up to 512 GB); NAS
- Browser: IE9/11; Chrome; Firefox
- Software: Smart PSS Lite; DSS; DMSS
- Mobile: iOS; Android
- Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; X.509 certificates; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certification
- CE-LVD: EN 62368-1
- CE-EMC: 2014/30/EU
Ports
- Audio Input: 1 channel (RCA)
- Audio Output: 1 channel (RCA)
- Alarm Input: 1 channel (wet contact, 5 mA, 3–5 VDC)
- Alarm Output: 1 channel (wet contact, 300 mA, 12 VDC)
Power
- Power Supply: 12 VDC / PoE
- Power Consumption:
- Basic: 3.7 W (12 VDC); 4.8 W (PoE)
- Max.: 8.3 W (12 VDC); 8.8 W (PoE)
Environment
- Operating Temperature: –40 °C to +60 °C
- Operating Humidity: ≤ 95%
- Protection: IP67
Structure
- Casing: Metal
- Dimensions: Φ122.0 mm × 110.9 mm
- Net Weight: 0.75 kg
- Gross Weight: 0.92 kg
