- Size (HxWxD) : 94x19x69 ±0.5 mm /
- Weight : 62 ±1 g
- Mounting : DIN rail
- Screw terminals max torque : 0.4 Nm
- Conductor cross section : 0.5 to 2.5 mm² (solid, stranded, and bootlace lugs)
- Conductor stripped length : 6 to 7 mm
- Shell material : Plastic
- Ambient temperature : -20 °C to 40 °C
- Humidity : 30 % to 70 % RH
- Max. altitude : 2000 m
- Power supply voltage AC : 100 – 260 V, 50/60 Hz
- Power supply voltage DC : N/A
- Power consumption : < 3 W
- External protection : Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
- Internal-temperature sensor : Yes
- Voltmeters (RMS for each phase) : 100 – 260 V
- Voltmeters accuracy : ±1 %
- Ammeters (RMS via CT for each phase and the Neutral) : 0-120 A
- Compatible CT : CT 120A
- Ammeters accuracy : ±1 % (2 – 120 A), ±2 % (1 – 2 A), ±5 % (0 – 1 A)
- Power and energy meters : Active and apparent power / Active and apparent energy / Power factor / Fundamental active and fundamental reactive energy
- Channel-to-channel calibration minimum load : 500 W per channel
- No load threshold : 30 VA per channel
- Measurement data storage : At least 60 days of 1 min data resolution
- Data export : CSV for PQ recorded values / JSON format export through RPC
- RF band : 2400 – 2495 MHz
- Max. RF power : <20 dBm
- Wi-Fi protocol : 802.11 b/g/n
- Wi-Fi Range : Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
- Bluetooth Protocol : 4.2
- Bluetooth Range : Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
- CPU : ESP32-D0WDQ6
- Flash : 16 MB
- Webhooks (URL actions) : 20 with 5 URLs per hook
- Scripting : Yes
- MQTT : Yes
- CoAP : No
EcoFlow Stream, POWER, SOLAR POWER

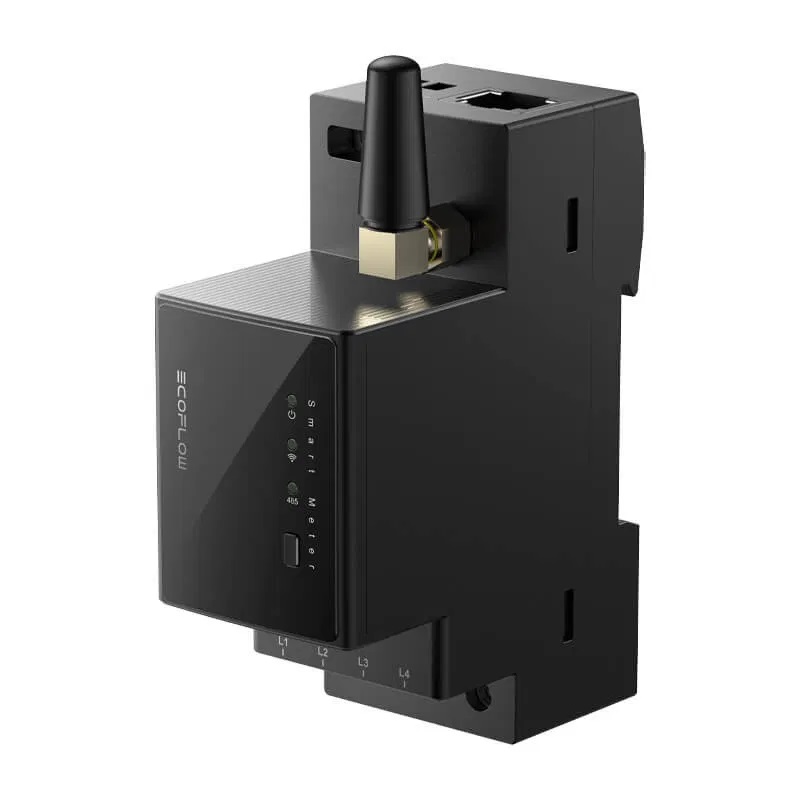

EcoFlow STREAM Smart Meter Real Time Energy Tracking & Allocation
129,00 €
Pair with the EcoFlow STREAM Series Plug & Play Solar Plant
- Whole-Home Intelligent Power Monitoring
- Utilise household electricity offset
- Maximise solar energy utilisation
- Easy to Install
- Works with EcoFlow OASIS
*Not compatible with EcoFlow PowerStream Microinverter
