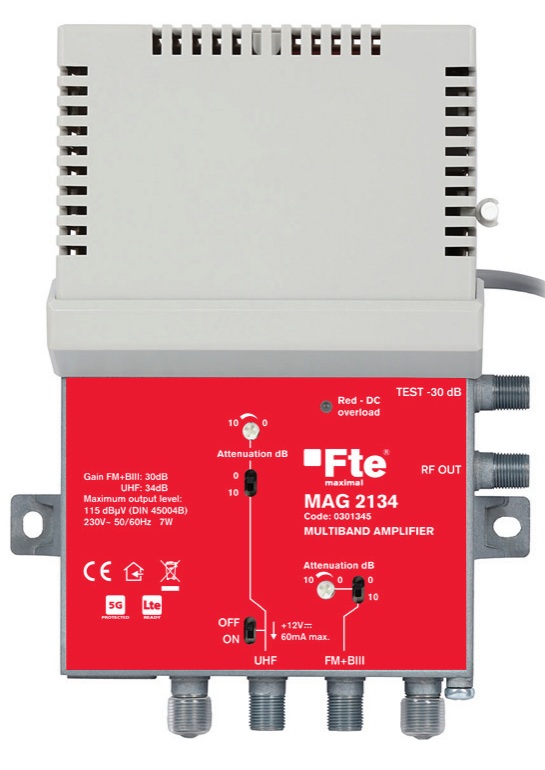

FTE MAG2134 Multiband Amplifier 1xUHF/VHF/FM 34dB Gain 115dB Max Output

119,00 €

Inputs : 1x FM+BIII, 1 UHF
Output : 1 + 1 Test (-30dB)
Frequency range : FM+BIII (88..108MHz) (174..230 MHz)
Frequency range : UHF 470..694 MHz
Gain : FM+BIII : 30 dB
Gain : UHF : 34 dB
Noise figure, typical : FM/BIII < 6dB
Noise figure, typical : UHF < 5dB
Maximum output level : IMD3=60dB (DIN45004B) 115 dBµV, IMD3=60dB 112 dBµV
Gain adjustment : 0 / -20 dB
Return loss : >10 dB
Preamplifiers feeding : 12V 60 mA Max.
Supply voltage limit values and power consumption : 200-250V~ 50/60 Hz / 7W (Without external DC loading)
Operative temperature range : -20º / +50ºC
