- Icon customization supported for page 1, 2, 3 and downloads to device via “HDL KNX Assistant Software”
- Brightness of the LCD and LED adjustable
- Touch button can be locked via KNX/EIB
- Button sound settable
- Keep pressing the first and last button (A1and A10) together for 2 seconds, the LED Indicators will flash and the panel
- will enter programming mode.
- Time Display and Temperature Display
- Control types: Switch control, Dimming control, Shutter control, Flexible control, Scene control, Sequence control,
- Percentage control, Threshold control, Pulse control, String(14bytes) control, Combination control, HVAC control,
- Audio control, Floor heating control, Button Lock, Button Trigger, Remote Trigger.
Display & Button Panels, SMART KNX

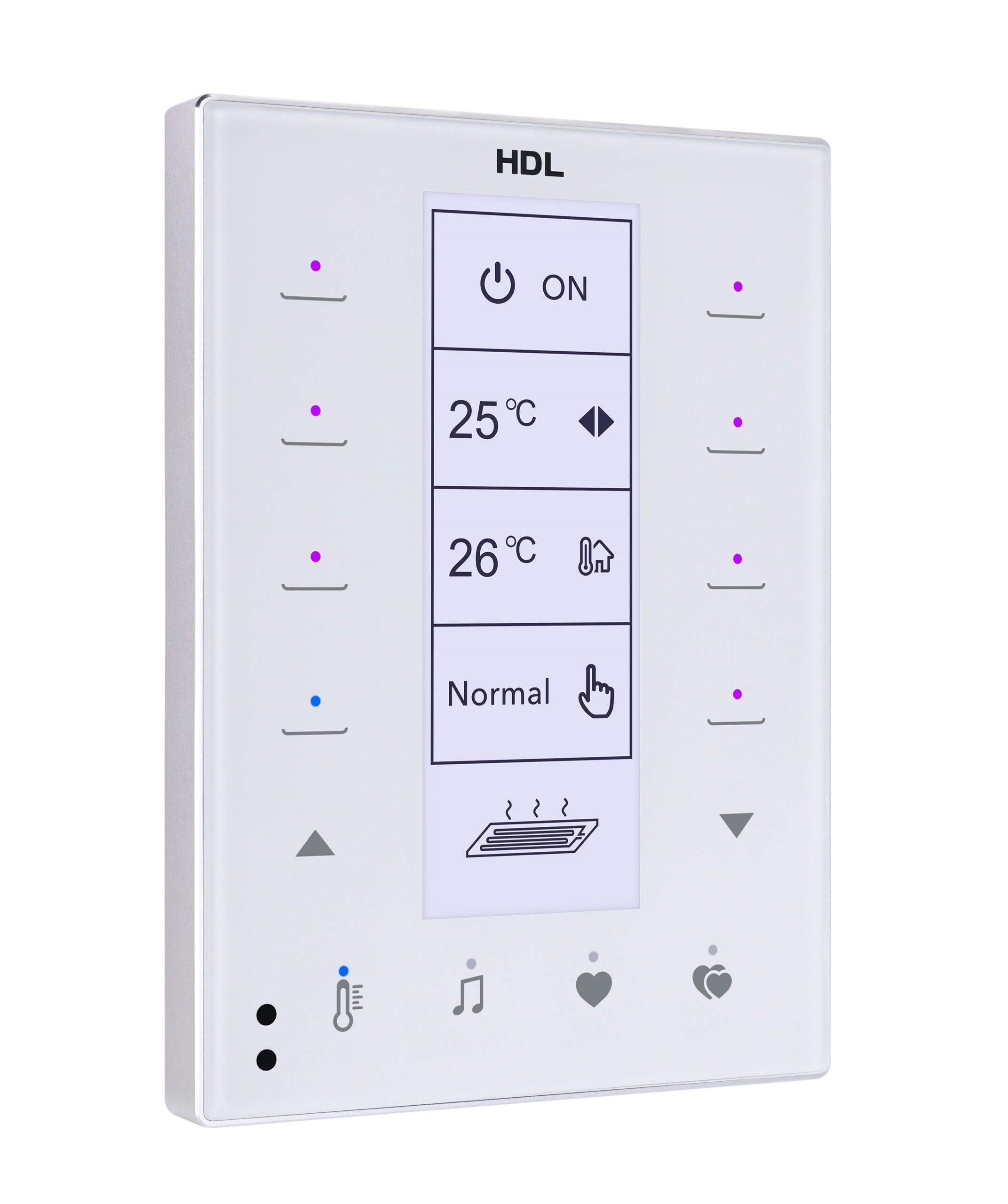

HDL DLP US Touch Panel 8 Buttons White
279,00 €
- Modern Series Touch DLP Smart Panel
- It has 8 touch Buttons
- User Interface DLP Series Panel programmed separately
- Each control button can be displayed with a Icon in the LCD screen, customization for end user
- There are 2 buttons to be used for shifting to next pages
- There are 4 shortcut buttons for directly going to certain page, the page can defined by user
Powered by M/PCI.3-A (not included)
