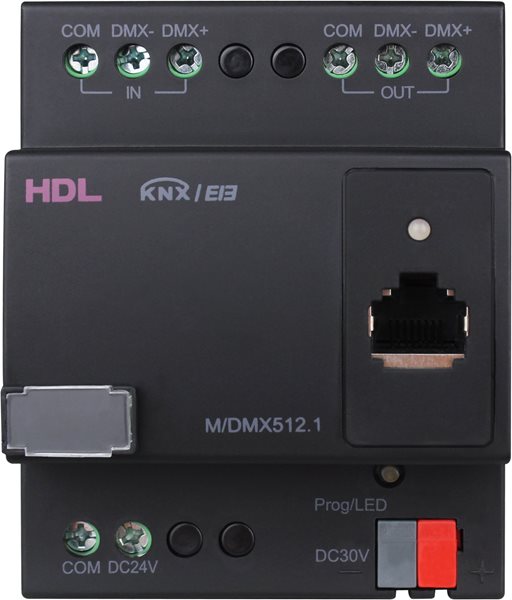

HDL DMX Recorder Module
,

HDL DMX Recorder Module

399,00 €

DMX512 Gateway belongs to HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 Gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc.

SKU: 14614 Categories: , Brand:
  •  3 working modes: DMX recorder mode, DMX dimming mode ( EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point) .
  • Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX.
  • Store and playback up to 24 programs, with up to 4 hours recording time.
  • DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available).
  • DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available).
  • DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc.
  • DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming.
