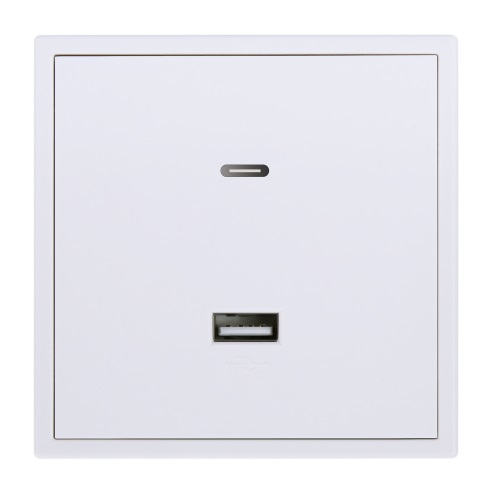

HDL Panel TILE SERIES Ivory White 1xUSB-A 1xUSB-C

Display & Button Panels, SMART KNX

HDL Panel TILE SERIES Ivory White 1xUSB-A 1xUSB-C

52,00 €

Tile USB2.0 and Type-C Socket is equipped with one Type-C port and one USB port, providing fast charging for Type-C and USB 2.0 devices at the same time.

SKU: 24281 Categories: Display & Button Panels, SMART KNX Brand: HDL Automation

Description
Reviews (0)

Rated voltage : 220V AC, 50Hz
Rated current : 2.2mA/220V AC
Output power : 20W
USB-A output : 5V/3A, 9V/2A, 12V/1.5A
Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A
USB-A + Type-C output : 5V/3A MAX.
Working temperature : -5℃~45℃
Working relative humidity : ≤90% RH, non-condensed
Storage temperature : -20℃~60℃
Storage relative humidity : ≤93%
Dimensions (W X H X D) : 86×86×30.5 (mm)（with plastic frame)
Net weight : 102.7g（without plastic frame)/113.7g（with plastic frame)
Housing material : Flame-retardant PC
Installation : Wall box
Protection rating (Compliant with EN 60529) : IP20
