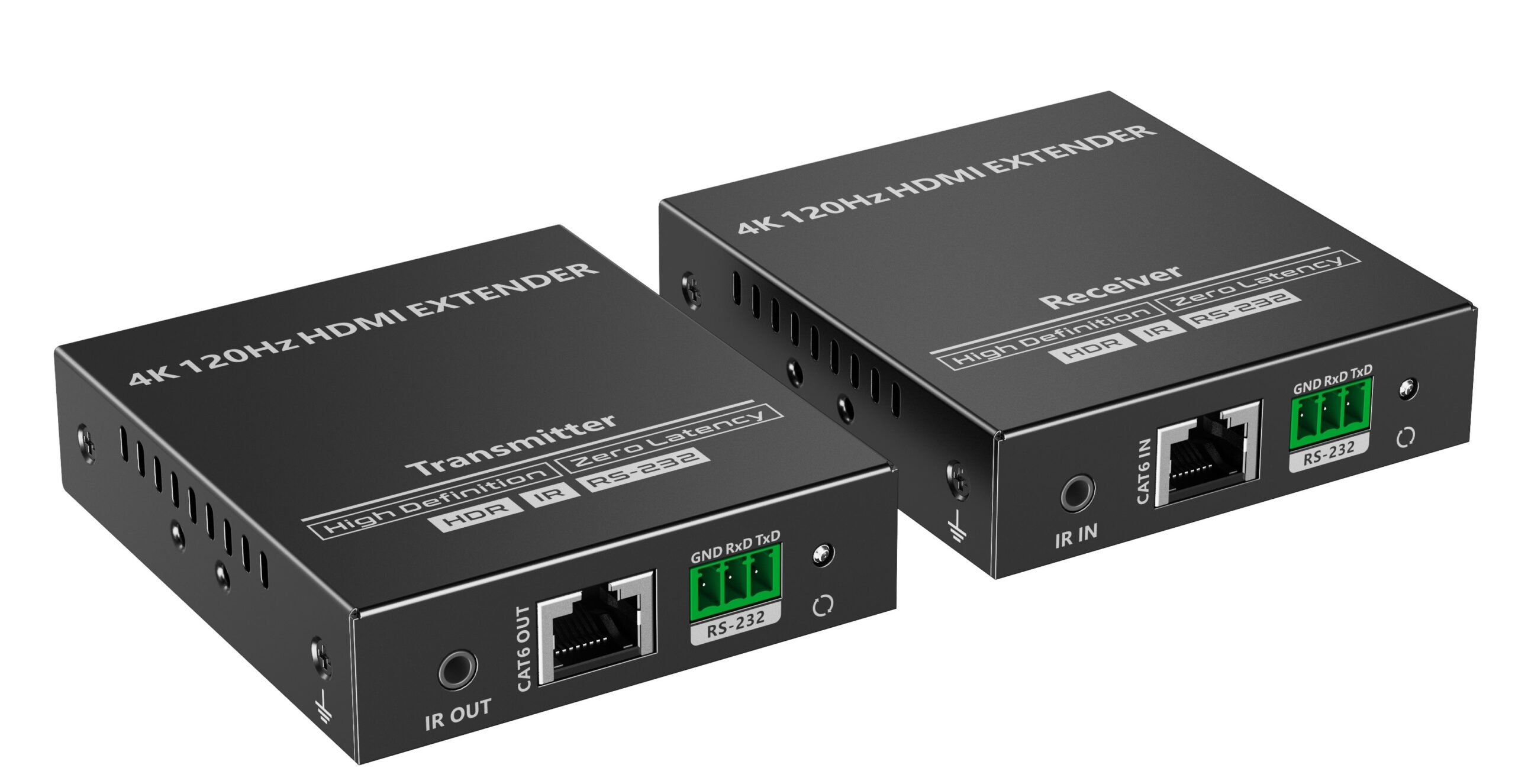

Lenkeng HDMI Extender over Ethernet 4K120Hz IR & RS232 LKV610HH
, ,

Lenkeng HDMI Extender over Ethernet 4K120Hz IR & RS232 LKV610HH

122,00 €

  • Featuring an HDMI transmitter and an HDMI receiver, this product achieves zero latency transmission via CAT6/6A/7 network cable of UHD audio and video signals
  • It supports 4K@60Hz video signal transmission up to 60 meters and 25 meters for 4K@120Hz
  • A variety of applications can be achieved with this kit, such as education, training, conferences, etc
SKU: 23894 Categories: , , Brand:
  • Input interface 1x HDMI，1x RJ45
  • Output interface 1x RJ45，1x HDMI
  • HDMI Length ≤5m
  • Maximum transfer rate 18Gbps
  • Compatibility HDMI 2.0，HDCP 2.2, HDCP 1.4
  • Resolutions 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 1920×1200, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60/120Hz, 2560×1440@50/60/120/144Hz, 3840×2160@24/25/30/50/60/100/120Hz, 4096×2160@24/25/30/50/60Hz
  • Connection types One-to-one connection
  • Transmission distance CAT6/6A/7: 4K@60Hz≤60m
  • 2560×1440@144Hz≤30m
  • 4K@120Hz≤25m
  • HDMI out PCM, DolbyDigital 5.1, DTS 5.1
  • 3.5mm L/R output PCM
  • IR receiving range ≤5m
  • IR frequency 20kHz~60kHz
  • RS-232 (GND/RxD/TxD) Support baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Power supply DC 5V/1A
  • Power consumption TX ≤ 3W，RX ≤ 3W
  • Working temperature -20℃~70℃
  • Storage temperature -30℃~70℃
  • Humidity 0~90%RH (no condensation)
  • Housing lron
  • Weight TX: 185g，RX: 185g
  • Color Black
  • Dimensions 85.0(L)*76.0(W)*20.6(H)mm
