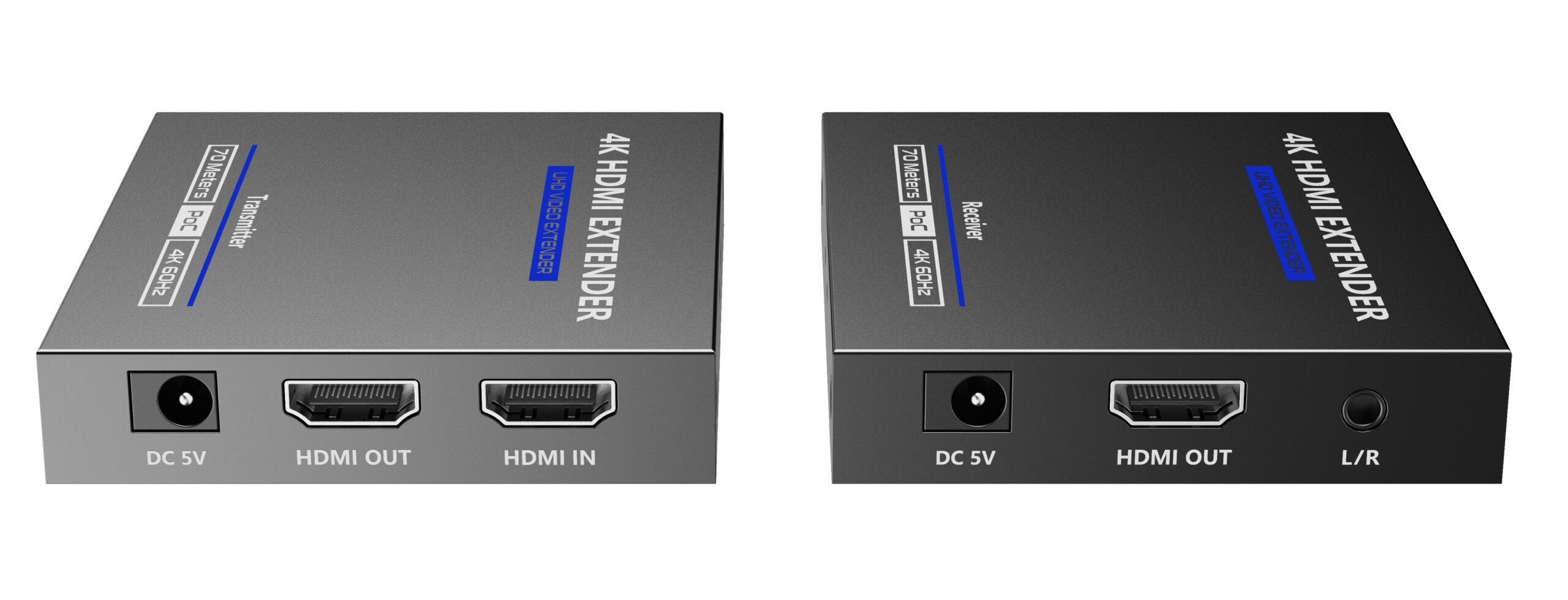

Lenkeng HDMI Extender over Ethernet 70M 4K POC IR Loop LKV565P
, ,

Lenkeng HDMI Extender over Ethernet 70M 4K POC IR Loop LKV565P

91,00 €

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

  • ipcolor IMAGE
  • 4K@60Hz HDR
  • Zero Latency
  • Visually Lossless
  • 70Meters
  • PoC
  • 3.5mm L/R
  • IR Pass-through
  • HDMI Loop Out
  • Lightning Protection-Surge Protection-ESD Protection
SKU: 23047 Categories: , , Brand:
  • HDMI Length ≤5m
  • Maximum transfer rate 18Gbps
  • Maximum transmission bandwidth 600MHz
  • EDID passthrough Yes
  • Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
  • HDCP 2.2
  • Resolutions 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840×2160@24/25/30/50/60Hz、4096×2160@24/25Hz、 1280×960、1280×800、1280×768、1680×1050、 1360×768、1366×768、1600×900、1024×768、800×600
  • Transmission distance CAT6/6A/7≤70m
  • Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
  • IR interface TX：1x 3.5mm IR OUT Female
  • RX：1x 3.5mm IR IN Female
  • Receiving range ≤ ≤5m
  • Infrared frequency 20KHz~60KHz
  • Power Supply TX：DC5V/2A
  • RX：DC5V/2A
  • Power Consumption TX：＜4W
  • RX：＜4W
  • Working temperature -20℃~60℃
  • Storage temperature -30℃~70℃
  • Humidity 0~90%RH（No condensation）
  • Housing Metal
  • Weight TX：140g
  • RX：140g
  • Color Black
  • Dimensions TX/RX：85.0(L)*75.5(W)*16.5(H)mm
  • Protection ESD protection
  • 1a Contact discharge level 2 (±4KV)
  • 1b Air discharge level 3 (±8KV)
  • Implementation of the standard: IEC61000-4-2
  • Lightning protection, Surge protection
