Lenkeng HDMI Extender over Ethernet 70m 4K30Hz POC IR Loop LKV223

67,00 €

This HDMI™ Extender includes a transmitter unit and a receiver unit, allows the HDMI™ signal to be transmitted up to 70 meters at 1080p resolution
using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports bi-directional IR pass-back and 3.5 mm stereo
audio output. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

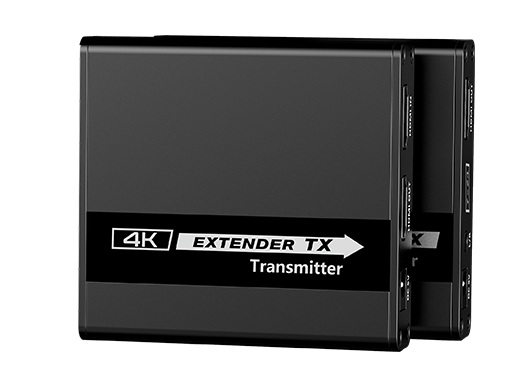

  • HDMI Loop Out: The Transmitter (TX) unit features an HDMI output, allowing you to connect a local monitor alongside the remote one.
  • Bi-directional IR Pass-back: Allows you to control your source device (like a Blu-ray player or STB) from the display location, or vice versa.
  • Zero Latency: Uses visually lossless compression technology for real-time video playback without the "lag" found in many IP-based extenders.
  • EDID Passthrough: Automatically negotiates the best resolution between your source and display.
  • Durability: Housed in an aluminum alloy casing with built-in lightning, surge, and ESD protection
SKU: 30214 Categories: , , Brand:

ideo & Audio Performance

  • Resolution Support: Up to $3840 times 2160$ @30Hz (4K UHD). Also supports 1080p @60Hz, 1080i, and 720p.

  • HDMI Compliance: HDMI 1.4 and HDCP 1.4 compatible.

  • Transmission Latency: Zero Latency (visually lossless compression).

  • Audio Formats: Supports LPCM, DTS-HD, and Dolby Digital 5.1/7.1.

  • Audio Extraction: Receiver (RX) features a 3.5mm L/R stereo output for external speakers or headphones.

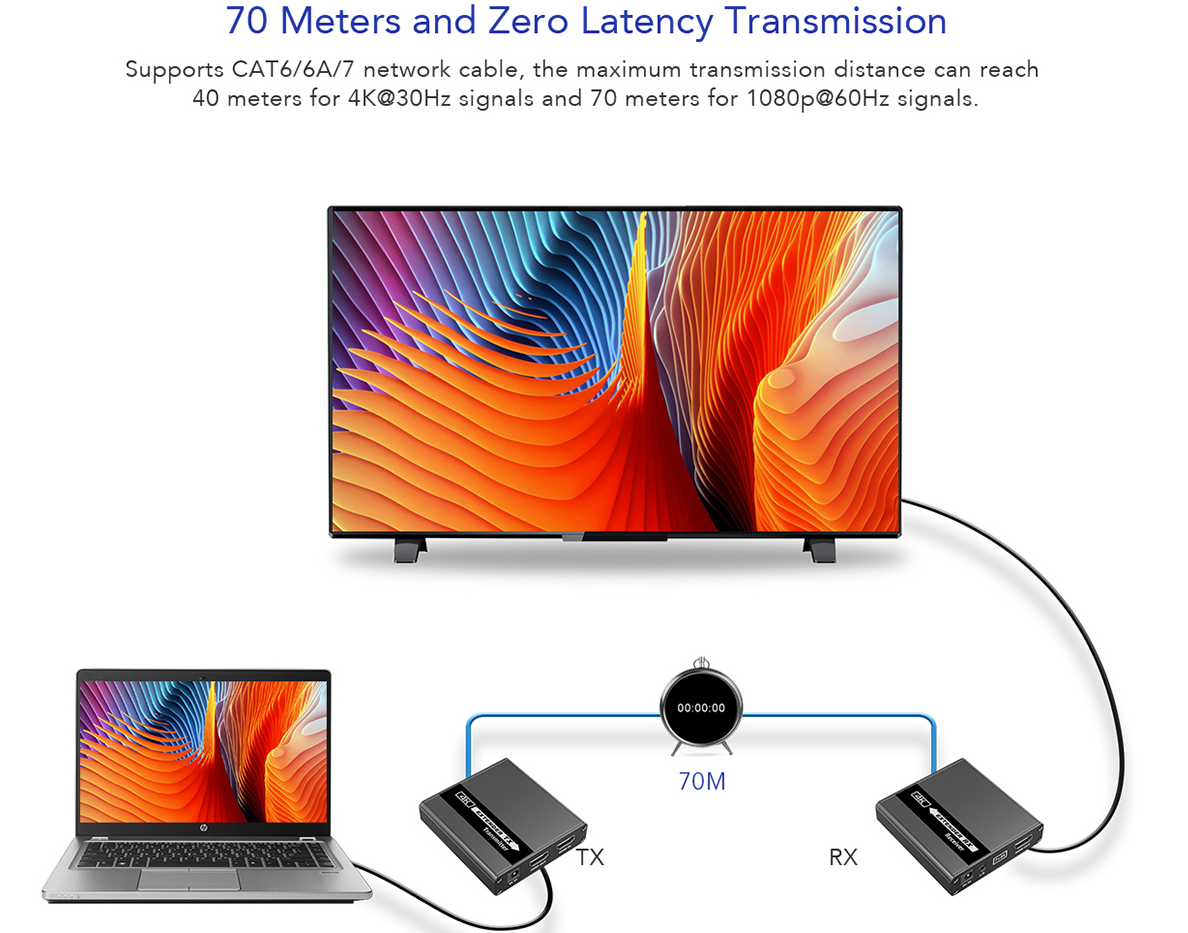

Transmission Range

  • 4K @30Hz: Up to 40 meters (131 feet) over Cat6/6A/7.

  • 1080p @60Hz: Up to 70 meters (230 feet) over Cat6/6A/7.

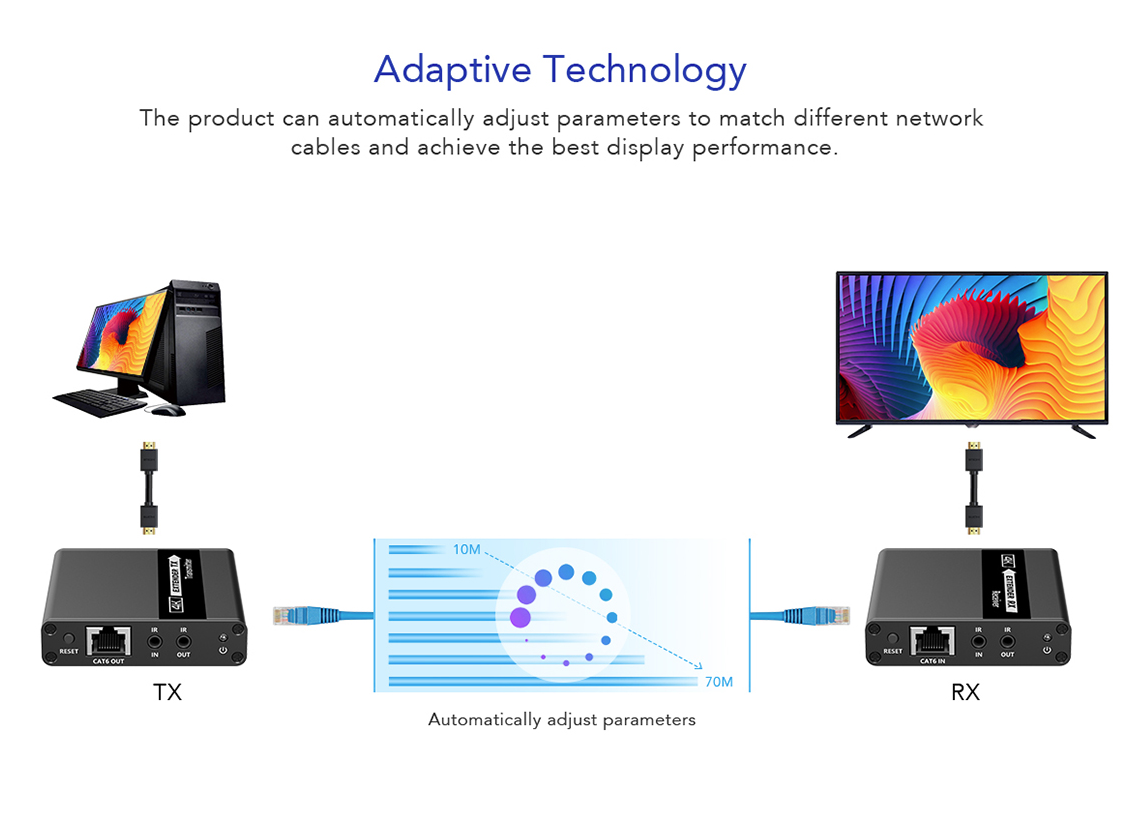

  • Cable Requirement: Standard IEEE-568B wiring; high-quality solid copper cabling is recommended.

Physical Interface & Control

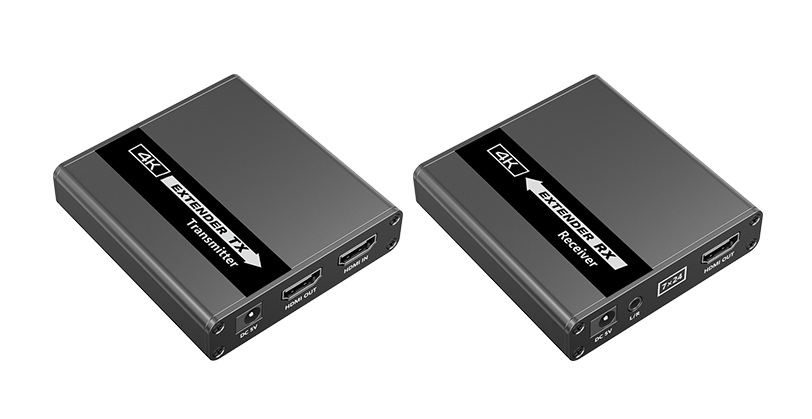

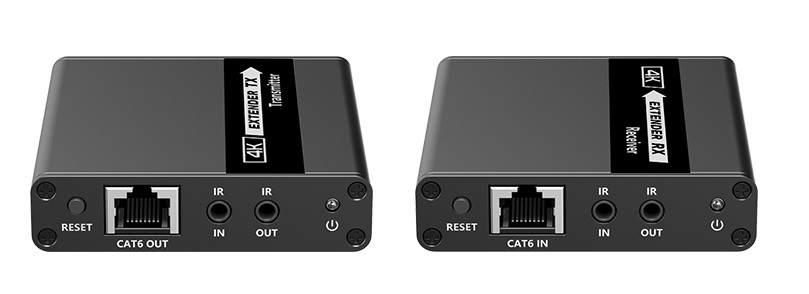

  • Transmitter (TX) Ports:

    • 1x HDMI Input

    • 1x HDMI Loop-out (for a local monitor)

    • 1x RJ45 Output

    • 1x IR Out (3.5mm)

    • 1x DC Power Input

  • Receiver (RX) Ports:

    • 1x HDMI Output

    • 1x RJ45 Input

    • 1x IR In (3.5mm)

    • 1x 3.5mm Stereo Audio Output

  • IR Pass-back: Supports 20KHz – 60KHz wide-frequency IR signals for remote control relay.

  • EDID: Supports automatic EDID pass-through for seamless plug-and-play.

Power & Build

  • PoC (Power over Cable): Only the Transmitter (TX) requires a 12V power adapter; the Receiver (RX) draws power through the network cable.

  • Protection: Built-in Lightning, Surge, and ESD protection (Level 3).

  • Chassis: Aluminum alloy housing for heat dissipation and durability.

  • Dimensions: Roughly $106 times 99 times 26$ mm per unit.
