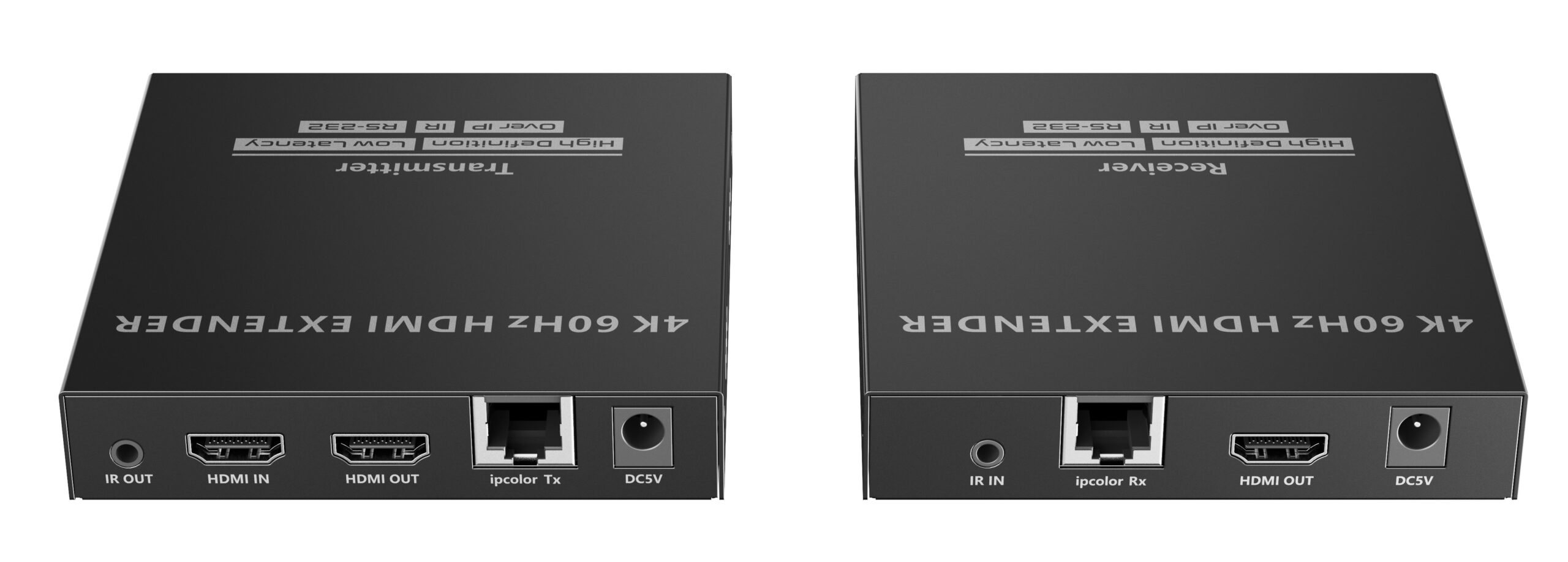

Lenkeng HDMI Extender over IP 4K60Hz 120m 1G IR Loop LKV582
, ,

Lenkeng HDMI Extender over IP 4K60Hz 120m 1G IR Loop LKV582

224,00 €

This product is a 4K@60Hz HDMI extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

  • ipcolor STREAM
  • Low Latency
  • 4K@60Hz
  • HDMI Loop-out
  • 120M
  • One to Many
  • IR Pass-back
  • RS-232 Control
  • Micro-USB Upgrade
  • Lighning Protection-Surge Protection-ESD Protection



SKU: 23062 Categories: , , Brand:
  • HDMI length ≤ 5m
  • Maximum transfer rate 18Gbps
  • Compatibility HDMI 2.0
  • HDCP 1.4/HDCP 2.2
  • Resolutions 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz, 2560×1600@60Hz
  • Connection types One-to-one connection
  • One-to-many connection
  • Switch cascading
  • Transmission distance Cat6/6A/7≤120m
  • Transmission latency 70~180ms
  • IR receiving range ≤ 5m
  • IR frequency 20kHz~60kHz
  • RS-232 (GND/RXD/TXD) Default baud rate: 115200
  • Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Power Supply DC 5V/1A
  • Power Consumption TX ≤ 4.5W
  • RX ≤ 2.5W
  • Working temperature – 20℃~60℃
  • Storage temperature 30℃~70℃
  • Humidity 0~90%RH (no condensation）
  • Housing lron
  • Weight TX:254g, RX:242g
  • Color Black
  • Dimensions 106.0(L)*103.0(W)*20.6(H)mm
  • Protection ESD protection
  • 1a Contact discharge level 2 (±4KV)
  • 1b Air discharge level 3 (±8KV)
  • Implementation of the standard: IEC61000-4-2
  • Lightning protection, Surge protection
