Mercury RG59B/U Coaxial Cable Foam 100m 808.101UK
, ,

Mercury RG59B/U Coaxial Cable Foam 100m 808.101UK

70,00 €

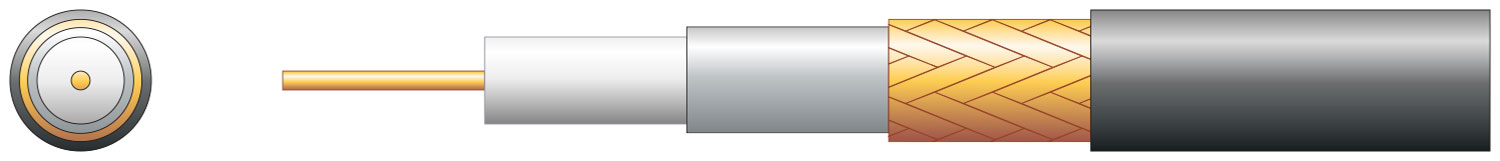

75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, aluminium foil screen, oxygen free copper braid and PVC sheath. Ideal for video signal transmission such as CCTV.

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Binded aluminium foil screen
  • OFC braid
  • Supplied in 100m reel with metric cut markers
SKU: 21868 Categories: , , Brand:
  • CSA: 0.5mm²
  • Conductor diameter: 0.8mmØ
  • Conductor material: Solid OFC
  • Braid: 48 x 0.12mmØ
  • Braid material: OFC
  • Screen: Aluminium / PET foil
  • Dielectric: 3.7mmØ foam PE
  • Cable : diameter: 6mmØ
  • Impedance75 Ohms
  • Capacitance: 67pF/m
  • Velocity factor: 83%
  • Return loss 5-400MHz: 24dB min./100m
  • Return loss 450-1000MHz: 20dB min./100m
  • Return loss 1000-2150MHz: 16dB min./100m
  • Attenuation @ 5MHz: 2.8dB max./100m
  • Attenuation @ 50MHz: 5.1dB max./100m
  • Attenuation @ 100MHz: 7.3dB max./100m
  • Attenuation @ 200MHz: 10.1dB max./100m
  • Attenuation @ 400MHz: 14.9dB max./100m
  • Attenuation @ 860MHz: 22.1dB max./100m
  • Attenuation @ 1000MHz: 24.7dB max./100m
  • Attenuation @ 1750MHz: 34.1dB max./100m
  • Attenuation @ 2150MHz: 38.1dB max./100m
  • Colour: Black
  • Length: 100m
  • Weight: 3.5kg
