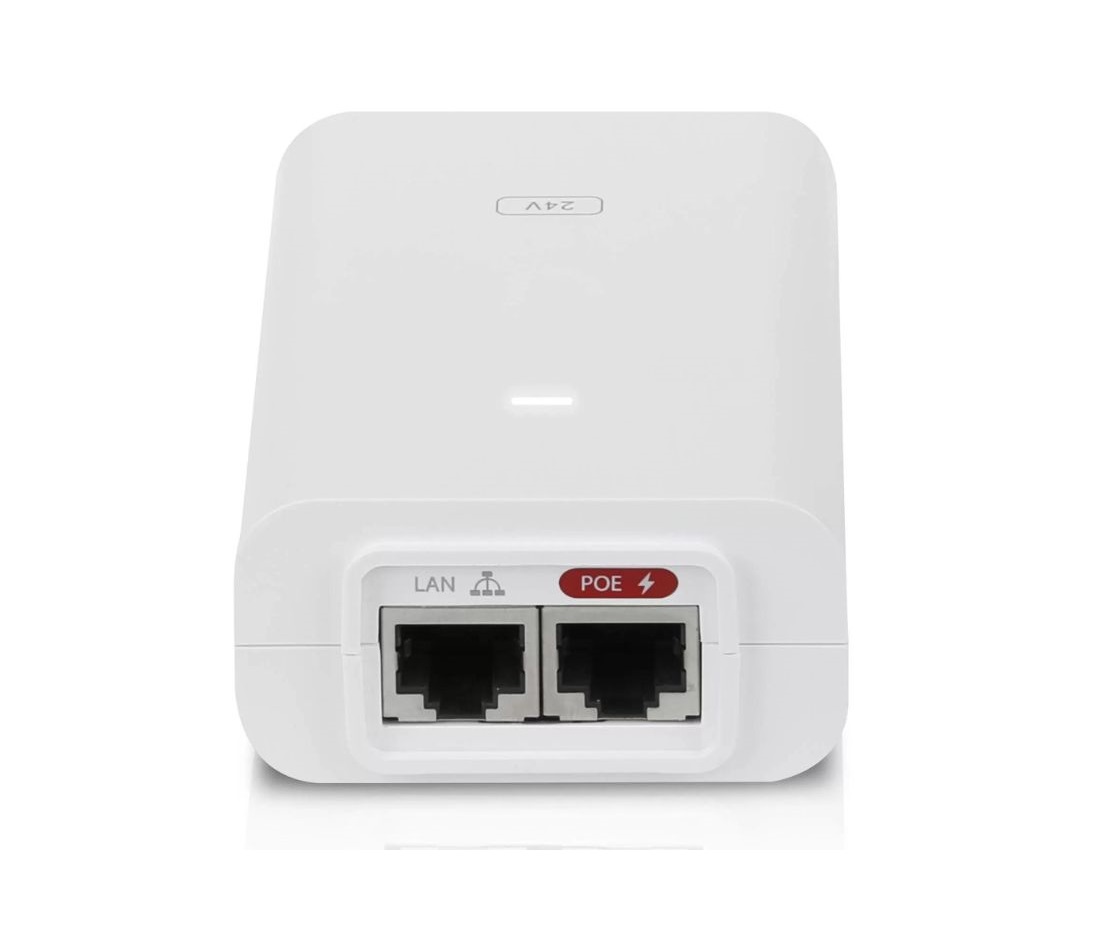

Ubiquiti Gigabit PoE Adapter/Injector 24V 24W POE-24-24W-G-WH
, ,

Ubiquiti Gigabit PoE Adapter/Injector 24V 24W POE-24-24W-G-WH

22,99 €

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.

  • Surge and clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
SKU: 24070 Categories: , , Brand:
  • Dimensions 88 x 57 x 33 mm (3.5 x 2.2 x 1.3")
  • Weight 159 g (5.6 oz)
  • Output voltage 24V DC @ 1.0A
  • LAN activity indicator No
  • Gigabit LAN port Yes
  • Remote reset capability Yes
  • Reset button Yes
  • Rated voltage 100-240V AC @ 50/60Hz
  • Input current 0.6A @ 120V AC, 0.4A @ 240V AC
  • Inrush current <60A peak @ 120V AC, <120A peak @ 230V AC
  • Efficiency 80+%
  • Output ripple 1% Max.
  • Switching frequency 65 kHz
  • Line regulation ≤ 3%
  • Load regulation ≤ 5%
  • 2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
  • 4-pair powering –
  • Storage temperature -30 to 70°C (-22 to 158° F)
  • Ambient operating temperature 0 to 40° C (32 to 104° F)
  • Ambient operating humidity 35 to 95% noncondensing
  • AC connector IEC-320 C6
  • Data IN / PoE RJ45 shielded socket
  • Surge protection Difference and common mode
  • Clamping protection 11V data, 60V power
  • Max. surge discharge 1500A (8/20 μs) power
  • Peak pulse current 36A (10/1000 μs) data
  • Shunt capacitance <5 pF data
  • Response time <1 ns
  • Certifications CE, FCC, IC, UL
