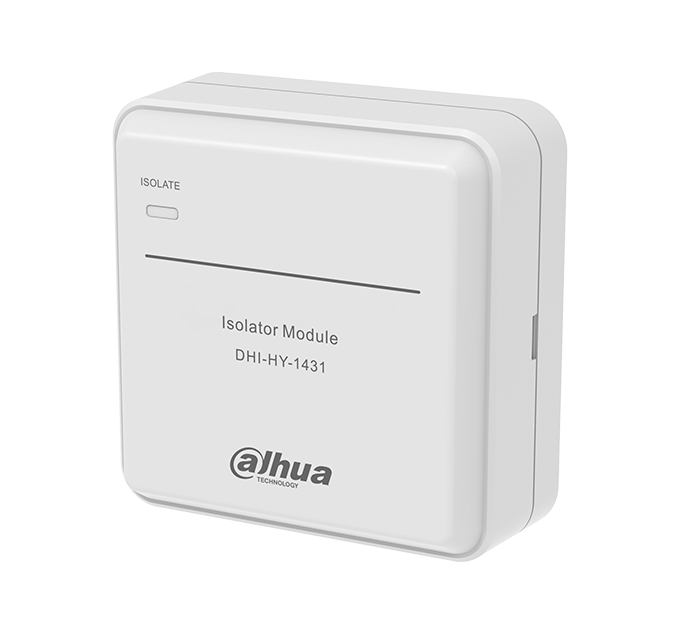

Dahua Addressable Fire Alarm Module Isolator without Base HY-1431R-CTXF
, ,

Dahua Addressable Fire Alarm Module Isolator without Base HY-1431R-CTXF

24,00 €

  • Automatic isolation of loop short circuits
  • Automatic restoration when the fault is removed
  • LED indicator for status and fault conditions
  • Compatible with two-wire polarity-free addressable loops
  • Compact design with base for quick installation
SKU: 25861 Categories: , , Brand:
  • Working Voltage : 24 V DC nominal
  • Monitoring Current : ≤ 150 μA
  • Alarm Current : ≤ 8 mA
  • Short-Circuit Protection Current : ~ 450 mA
  • Communication Wiring : Two-wire, polarity-free
  • Maximum Loop Distance : ≤ 1500 m
  • Operating Temperature : −10 °C to +55 °C
  • Storage Temperature : −20 °C to +65 °C
  • Humidity : ≤ 95% RH (non-condensing)
  • Dimensions (with base) : 90 mm × 90 mm × 37 mm
  • Weight (with base) : ~107 g
