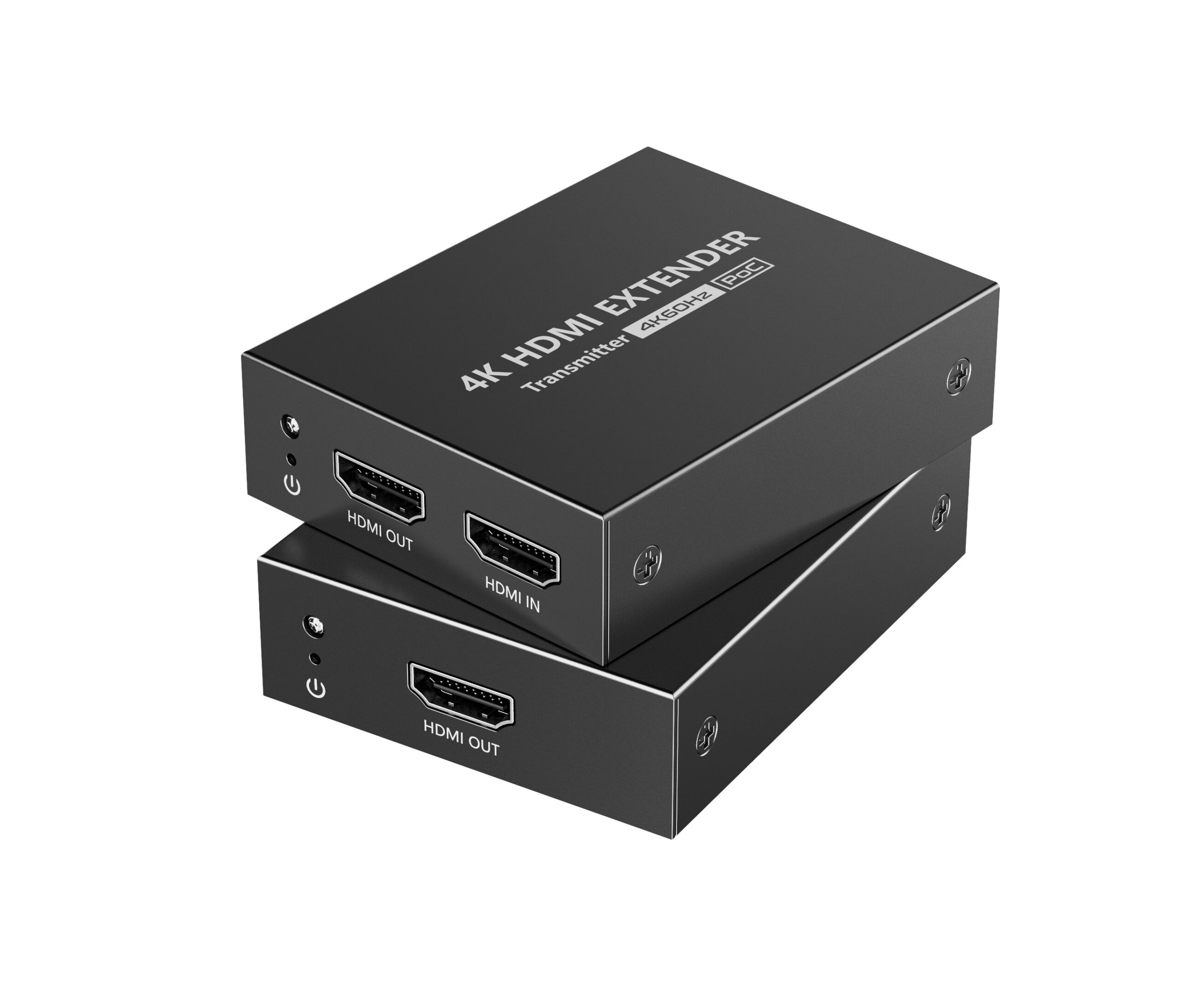

Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P
, ,

Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P

79,00 €

  • This is an HDMI point-to-point extender kit, it can realize zero-latency transmission
  • The 4K@60Hz HDMI signal can be extended by 50m through CAT6/6A/7 network cable
  • It supports HDMI loop out, IR passthrough, etc
SKU: 23044 Categories: , , Brand:
  • HDMI Length ≤5m
  • Maximum transfer rate 18Gbps
  • Maximum transmission bandwidth 600MHz
  • EDID passthrough Yes
  • Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
  • HDCP 2.2, HDCP1.4
  • Resolutions 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840×2160@24/25/30/50/60Hz、3440×1440、2560×1440、 2560×1080、2048×1080、1920×1440、1920×1080、 1280×960、1280×800、1280×768、1680×1050、 1360×768、1366×768、1600×900、1024×768、800×600
  • Transmission distance 4K transmission distance 50m
  • 1080p transmission distance 70m
  • Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
  • IR interface 1x 3.5mm IR OUT Female
  • 1x 3.5mm IR IN Female
  • Receiving range ≤5m
  • Infrared frequency 20KHz~60KHz
  • Power Supply TX: DC5V/2A
  • RX: PoC（Powered by TX）
  • Power Consumption TX+RX＜5.5W
  • Working temperature -20℃~60℃
  • Storage temperature -30℃~70℃
  • Humidity 0~90%RH（No condensation）
  • Housing Metal
  • Weight TX : 130g
  • RX：130g
  • Color Black
  • Dimensions 75.0(L)*60.0(W)*21.0(H)mm
  • Protection ESD protection
  • 1a Contact discharge level 2 (±4KV)
  • 1b Air discharge level 3 (±8KV)
  • Implementation of the standard: IEC61000-4-2
  • Lightning protection, Surge protection
